Camera setup guide

Connect ZR Ctl to your Nikon ZR.

Pick the same transport in the app and on the camera. USB is the clean wired path, Wi-Fi Search works on a router or iPhone Personal Hotspot, and AP Direct joins the camera's own network when there is no router nearby.

Start setup Get the beta

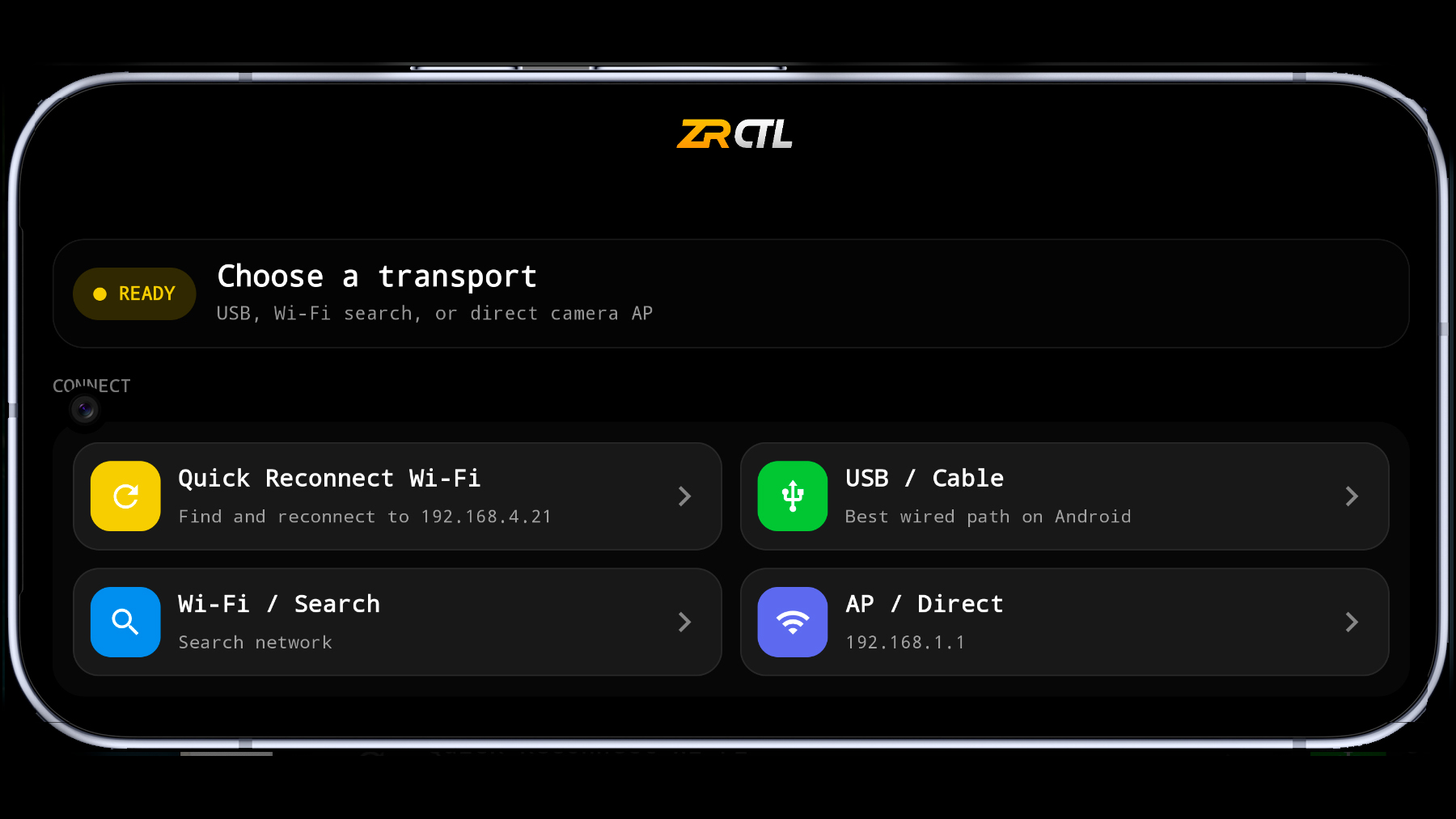

ZR Ctl connection page showing transport selection and reconnect options

In ZR Ctl: open Connection, then choose the same path you set up on the camera.

Choose A Transport

Four setup paths, one control surface.

USB uses MTP/PTP, Wi-Fi Search uses a router or your iPhone hotspot, and AP Direct uses the camera's own network.

USB / Cable

Best for the lowest-latency wired control path and for avoiding crowded Wi-Fi.

Camera USB: MTP/PTP

Wi-Fi / Search

Best when the camera and phone/tablet can stay on the same router or studio network.

Camera profile: Search network

iPhone Hotspot

Best when you want router-style Wi-Fi Search without bringing a separate router.

ZR Ctl button: Wi-Fi / Search

AP / Direct

Best in the field when the camera needs to create its own direct Wi-Fi network.

Default IP: 192.168.1.1

Camera Setup

Follow the path you want to use.

These instructions match the transport names in ZR Ctl, the Nikon ZR network menu, and the iPhone hotspot path.

USB / Cable

Use MTP/PTP, then connect with a data cable.

USB is the cleanest wired path. The important part is putting the camera in the USB mode ZR Ctl can control, then using a cable that carries data.

Camera menu Network menu > USB
Camera setting MTP/PTP
ZR Ctl button USB / Cable
Nikon ZR USB cable connection diagram from the Nikon ZR Reference Guide

  1. Set the camera USB mode.

    On the ZR, open Menu > Network menu > USB, then choose MTP/PTP.

  2. Avoid the other USB modes for app control.

    Do not choose iPhone or USB streaming (UVC/UAC) when you want ZR Ctl camera control. Those modes are for other workflows.

  3. Protect the phone battery if needed.

    To avoid the camera pulling power from the iPhone over USB-C, set Setup menu > USB power delivery > OFF. Keep USB itself set to MTP/PTP.

  4. Connect with a USB-C data cable.

    Use a cable that supports data. A charge-only cable can power the camera without exposing it to iOS or Android as a controllable camera.

  5. Dismiss camera import screens.

    If the camera shows an upload-priority screen, half-press the shutter to exit. If the phone opens Photos, Files, or an import view, back out and return to ZR Ctl.

  6. Connect from ZR Ctl.

    Open Connection and tap USB / Cable. On iPhone or iPad, allow Camera permission if iOS asks.

Nikon camera screens

Nikon ZR USB menu with MTP/PTP selected
Select MTP/PTP in the ZR USB menu.
Nikon ZR diagram showing a USB cable connected directly to the camera
Then connect directly with a USB data cable.
Wi-Fi / Search

Put the camera and device on the same Wi-Fi network.

This is the best wireless option when you have a stable router, studio network, or production Wi-Fi. ZR Ctl searches the current network for the camera.

Camera mode Connect to computer
Profile type Search for Wi-Fi network
ZR Ctl button Wi-Fi / Search
Nikon ZR wireless LAN station mode diagram showing camera, router, and computer

  1. Join the phone or tablet to the Wi-Fi network.

    Connect the device running ZR Ctl to the router, studio network, or production Wi-Fi you want the ZR to use.

  2. Set the ZR connection type.

    On the camera, open Menu > Network menu > Connect to computer > Connection type, then choose Camera control.

  3. Create a camera network profile.

    Go to Connect to computer > Network settings > Create profile. You can keep the default profile name or rename it.

  4. Choose the same Wi-Fi network.

    Select Search for Wi-Fi network, pick the same SSID your phone or tablet is using, then enter the Wi-Fi password on the camera.

  5. Let the camera obtain an IP address.

    Use automatic IP assignment unless your network requires manual addressing. Finish the profile when the camera reports configuration complete.

  6. Search from ZR Ctl.

    Return to the app and tap Wi-Fi / Search. When the camera appears under discovered cameras, select it.

  7. Confirm pairing if the camera asks.

    On a first connection or fresh install, the camera may show an authentication prompt. Confirm it, then enter the code in ZR Ctl if requested.

Nikon camera screens

Nikon ZR Connect to computer network settings screen
Open Connect to computer, then Network settings.
Nikon ZR Create profile menu screen
Create a new camera network profile.
Nikon ZR profile name entry screen for router mode
Name the router Wi-Fi profile or keep the default.
Nikon ZR Search for Wi-Fi network selection screen
Choose Search for Wi-Fi network.
Nikon ZR Wi-Fi network SSID selection screen
Select the same SSID your device is using.
Nikon ZR encryption key entry screen
Enter the Wi-Fi password when prompted.
Nikon ZR keyboard screen for entering a Wi-Fi encryption key
Finish the password entry on the camera.
Nikon ZR Wi-Fi connection completed message
Wait for the camera to confirm the Wi-Fi link.
Nikon ZR IP address assignment screen
Use automatic IP assignment unless you need manual settings.
Nikon ZR Start pairing menu item
Start pairing after the profile is ready.
Nikon ZR authentication code screen
Confirm the authentication code if the camera asks.
Nikon ZR connected network profile highlighted in green
The connected profile is shown in green.
iPhone Hotspot

Use your iPhone as the network.

This is a router-style wireless setup without carrying a router. The ZR joins the iPhone's Personal Hotspot, then ZR Ctl searches that hotspot network for the camera.

iPhone setting Personal Hotspot
Camera profile Search for Wi-Fi network
ZR Ctl button Wi-Fi / Search
Diagram showing Nikon ZR connected to ZR Ctl through an iPhone Personal Hotspot

  1. Turn on the iPhone hotspot.

    On the iPhone running ZR Ctl, open Settings > Personal Hotspot, or Settings > Cellular > Personal Hotspot, then turn on Allow Others to Join.

  2. Use a camera-friendly name and password.

    The ZR will join the hotspot like normal Wi-Fi. If needed, simplify the iPhone name in Settings > General > About > Name, then use an easy-to-type hotspot password.

  3. Keep the hotspot screen open while the ZR joins.

    Leave the iPhone on the Personal Hotspot screen until the camera connects. This makes the hotspot easier for non-Apple devices to see.

  4. Set the ZR connection type.

    On the camera, open Menu > Network menu > Connect to computer > Connection type, then choose Camera control.

  5. Create a Search network profile.

    Go to Connect to computer > Network settings > Create profile, choose Search for Wi-Fi network, then select the iPhone hotspot name.

  6. Enter the hotspot password on the camera.

    Use automatic IP assignment unless you have a specific reason to set an address manually. Finish the profile when the camera reports the Wi-Fi link is complete.

  7. Connect from ZR Ctl with Wi-Fi / Search.

    Return to ZR Ctl, open Connection, and tap Wi-Fi / Search. Choose the discovered camera when it appears.

  8. Authenticate if prompted.

    If the camera asks to pair or shows an authentication code, confirm on the camera and continue in ZR Ctl.

Hotspot and camera screens

iPhone Personal Hotspot screen with Allow Others to Join enabled
Turn on Allow Others to Join on the iPhone.
iPhone Personal Hotspot screen showing the hotspot name and Wi-Fi password
Use the iPhone name and Wi-Fi password as the camera network.
Nikon ZR Connect to computer network settings screen
Start from Connect to computer.
Nikon ZR Create profile menu screen
Create a new camera network profile.
Nikon ZR Search for Wi-Fi network selection screen
Choose Search for Wi-Fi network.
Nikon ZR Wi-Fi network SSID selection screen
Select the iPhone hotspot name from the SSID list.
Nikon ZR encryption key entry screen
Enter the iPhone hotspot password.
Nikon ZR Wi-Fi connection completed message
Wait for the camera to confirm the Wi-Fi link.
Nikon ZR Start pairing menu item
Start pairing after the hotspot profile is ready.
Nikon ZR authentication code screen
Confirm the authentication code if the camera asks.
ZR Ctl connection page showing the Wi-Fi Search option
In ZR Ctl, tap Wi-Fi / Search, not AP / Direct.
AP / Direct

Let the camera create the Wi-Fi network.

AP Direct is the field option. The ZR creates its own network, the phone or tablet joins it, and ZR Ctl connects to the camera at the direct address.

Camera profile Direct connection to computer
Device Wi-Fi Join camera SSID
ZR Ctl button AP / Direct
Nikon ZR wireless LAN access point mode diagram showing camera connected directly to a computer

  1. Use Connect to computer, not smart device.

    ZR Ctl uses the camera-control computer path. On the camera, start from Menu > Network menu > Connect to computer.

  2. Set the connection type to Camera control.

    Open Connection type, then choose Camera control before creating the network profile.

  3. Create a direct profile.

    Go to Network settings > Create profile, then choose Direct connection to computer.

  4. Join the camera's Wi-Fi network.

    The ZR will show a network name and password. On the phone or tablet, open system Wi-Fi settings and join that network.

  5. Return to ZR Ctl.

    Open Connection and tap AP / Direct. The app will try the direct camera address, 192.168.1.1.

  6. Authenticate if prompted.

    If the camera asks to pair or authenticate, confirm on the camera and continue in ZR Ctl.

  7. Expect no internet during direct mode.

    The device is joined to the camera, not a router. If live view is choppy, stay close to the camera or lower preview resolution/quality in Advanced > Preview.

Nikon camera screens

Nikon ZR Connect to computer network settings screen
Start from Connect to computer.
Nikon ZR Create profile menu screen
Create a new direct camera profile.
Nikon ZR profile name entry screen for direct mode
Name the direct profile or keep the default.
Nikon ZR Direct connection to computer selection screen
Choose Direct connection to computer.
Nikon ZR direct Wi-Fi SSID and password screen
Use the SSID and password shown by the camera.
Nikon ZR Start pairing menu item
Start pairing after the direct profile is ready.
Nikon ZR authentication code screen
Confirm the authentication code if the camera asks.
Nikon ZR connected network profile highlighted in green
The connected profile is shown in green.

Connection Checks

The usual fixes before a long reset.

Most failed connections come from a transport mismatch, a stale camera network session, or the device being on the wrong Wi-Fi.

The camera is in a different transport mode

The ZR can grey out Wi-Fi/AP options while USB MTP/PTP is active. If you switch from USB to wireless, disconnect or end the current camera connection first.

The app cannot discover the camera

For Wi-Fi Search, both devices must be on the same local network. If discovery still fails, use Advanced Tools and connect by IP.

The camera cannot see the iPhone hotspot

Keep the iPhone on the Personal Hotspot screen, confirm Allow Others to Join is on, simplify the hotspot name or password if needed, then run the camera's Search for Wi-Fi network step again.

The camera asks for an authentication code

That is normal on first pairing or after a fresh install. Confirm the camera prompt, then enter the code ZR shows in the app.

Live view feels slower in AP mode

Direct camera Wi-Fi has less headroom than a strong router or USB connection. Move closer to the camera or lower Preview Resolution and Preview Quality.

Reference note: Nikon menu labels and camera diagrams are included as setup references from the Nikon ZR Reference Guide, especially Nikon's pages for USB computer connection, wireless LAN computer connection, Connect to computer, USB mode, and USB power delivery. iPhone Personal Hotspot behavior is referenced from Apple Support's Personal Hotspot guide. ZR Ctl is an independent app and is not affiliated with Nikon or Apple.
